Author Topic: hooking up transformer help  (Read 26871 times)

romiin

  • Guest
hooking up transformer help
« on: November 09, 2020, 03:52:46 PM »
Just wondering how to hook this up to the track, I'll post a couple pics

romiin

  • Guest
Re: hooking up transformer help
« Reply #1 on: November 09, 2020, 03:53:36 PM »
track

romiin

  • Guest
Re: hooking up transformer help
« Reply #2 on: November 09, 2020, 03:54:31 PM »

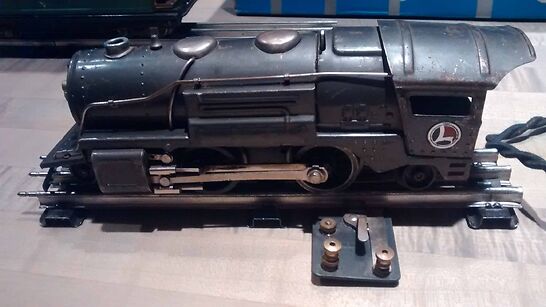

this is the engine I was going to try

Terry

  • Administrator
  • Hero Member
  • *****
  • Posts: 912
    • View Profile
    • eBay Auctions
Re: hooking up transformer help
« Reply #3 on: November 09, 2020, 04:22:40 PM »
you have posts A B C U
Any combination of a,b,c post plus U gives you variable voltage.

U goes to the outside rail.

The other post goes to the middle rail.

A + U gives fastest speed
B + U gives medium speed
C + U gives slow speed.

I'd try B + U first then switch to C or A if needed to make train run well.


romiin

  • Guest
Re: hooking up transformer help
« Reply #4 on: November 09, 2020, 04:33:34 PM »
 I know you told me once, but didn't see  abcu on the transformer, but get what you mean now. thanks Loco
